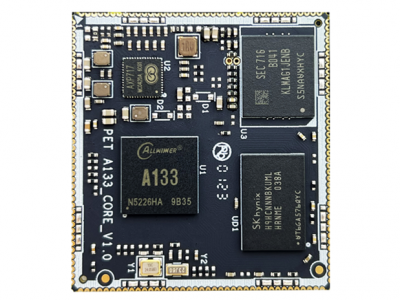

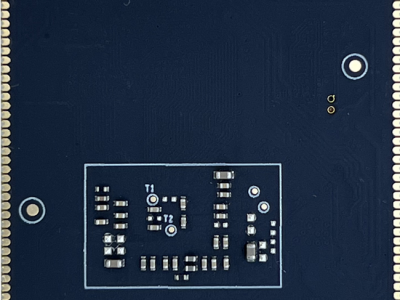

全志A133核心板

处理器

Cortex A53 四核64位

内存

LPDDR4 2G/4G 标配 2GB

存储

EMMC 8G/16G/32G/64G/128G 标配16GB

电源管理

独立 PMIC/PMU AXP717

操作系统

安卓12

PET-A133核心板/核心模组接口参数

显示输出接口

LVDS双通道 1路、RGB 1路、MIPI四通道1路，最高支持1920*1200

视频输入接口

MIPI CSI 2路，一路4Lane ，一路2Lane，支持USB摄像头

触摸屏接口

多点电容

USB接口

USB2.0规范、支持OTG 1路、USB-HOST 1路，有更多需求可在底板进行USB扩展

SD/TF卡接口

1路

键盘接口

Power、烧写键、ADC按键

以太网接口

1路，千兆GMAC或百兆EMAC信号复用

SPI接口

3路

I2C接口

4路

I2S接口

4路

UART串口

6路

SDIO接口

2路，一般用于WIFI模组和TF卡

GPIO/中断

多路

音频接口

耳机1路，MIC 3路

PWM接口

5路

PET-A133核心板/核心模组结构参数

尺寸

44 x 41 mm，厚度1.2mm

邮票孔/排针间距

1.0 mm

引脚数

162 pin

PCB工艺

六层板，沉金工艺

1

GND

电源地

2

MCSIB-CLKN

MIPI CSI信号

MCSIB

3

MCSIB-CLKP

4

MCSIB-D0N

5

MCSIB-D0P

6

MCSIB-D1N

7

MCSIB-D1P

8

GND

电源地

9

HS-MIC

Mic2

Mic

10

MICIN2P

Mic1

11

MICIN2N

12

HBIAS

Mic 偏执电压

13

MICIN1P

Mic0

14

MICIN1N

15

MBIAS

Mic 偏执电压

16

PL9-PLEINT9

功放静音控制

GPIO

GPIO/EINT

17

HPOUTR

耳机输出

HP

18

HPOUTL

19

HP-DET

耳机插入检测

20

HPOUTFB

耳机参考地

21

VCC-EMAC

电源输出(EMAC)

VCC-OUT

22

PL10-PLEINT10

4G复位信号

GPIO

GPIO/EINT/S_PWM

23

VCC-IO

电源输出

VCC-OUT

24

PH13-EPHY0_25M

25M时钟输出

EPHY0_25

GPIO/EINT/EPHY0_25/TWI3_SDA

25

PH10-MDIO0

以太网

RMII0

GPIO/EINT/SPI2_MOSI

26

PH9-MDC0

GPIO/EINT/SPI2_CLK

27

PH8-RMII0_RST

GPIO/EINT/SPI2_CS

28

PH7-RMII0_TXEN

GPIO/EINT/ SPI1_MISO/RGMII

29

PH6-RMII0_TXCK

GPIO/EINT/ SPI1_MOSI/RGMII

30

PH5-RMII0_TXD0

GPIO/EINT/ SPI1_CLK/UART3_RX/RGMII

31

PH4-RMII0_TXD1

GPIO/EINT/ SPI1_CS/UART3_TX/RGMII

32

PH3-RMII0_RXER

GPIO/EINT/RGMII

33

PH2-RMII0_CRS_DV

GPIO/EINT/RGMII

34

PH1-RMII0_RXD0

GPIO/EINT/TWI0_SDA/RGMII

35

PH0-RMII0_RXD1

GPIO/EINT/TWI0_SCK/RGMII

36

GND

电源地

37

AP-NMI

唤醒CPU信号

38

FEL

烧写按键信号

KEY

39

PWRON

电源按键信号

KEY

40

AP-RESET

复位按键信号

KEY

41

LRADC

ADC 输入信号

ADC

42

SDC0-D2

TF卡信号

SDC0

GPIO/EINT

43

SDC0-D3

GPIO/EINT

44

SDC0-CMD

GPIO/EINT

45

SDC0-CLK

GPIO/EINT

46

SDC0-D0

GPIO/EINT

47

SDC0-D1

GPIO/EINT

48

PF6-PFEINT6

EINT

GPIO/EINT

49

GND

电源地

50

PL11-PLEINT11

5V输出控制信号

GPIO

GPIO/EINT

51

CHGLED

充电指示灯信号

CHGLED

52

TS

电池温度检测信号

TS

53

PH18-PHEINT18

GPIO

GPIO

GPIO/EINT/RGMII

54

PH17-PHEINT17

GPIO

GPIO

GPIO/EINT/RGMII

55

PH16-PHEINT16

GPIO

GPIO

GPIO/EINT/RGMII

56

PH15-PHEINT15

GPIO

GPIO

GPIO/EINT/RGMII

57

PH14-PHEINT14

GPIO

GPIO

GPIO/EINT/RGMII

58

PH12-PHEINT12

GPIO

GPIO

GPIO/EINT/TWI3_SCK

59

PH11-PHEINT11

GPIO

GPIO

GPIO/EINT/SPI2_MISO

60

PL4-PLENIT4

NFC接口控制IO

GPIO

GPIO/EINT

61

PL5-PLEINT5

NFC接口中断输入

EINT

GPIO/EINT

62

PB9-UART0_TX

UART0(调试串口)

UART0

GPIO/EINT/TWI0_SCK/UART0_TX

63

PB10-UART0_RX

GPIO/EINT/TWI0_SDA/UART0_RX

64

PB0-UART2_TX

UART2

UART2

GPIO/EINT/SPI2_CS/UART2_TX

65

PB1-UART2_RX

GPIO/EINT/SPI2_CLK/UART2_RX

66

PL2-S_UART_TX

GPIO

GPIO

GPIO/EINT/S_UART_TX

67

PL3-S_UART_RX

GPIO/EINT/S_UART_RX

68

PE4-TWI3_SDA

NFC接口控制IO

GPIO

GPIO/EINT/TWI3_SDA

69

PE3-TWI3_SCK

GPIO

GPIO

GPIO/EINT/TWI3_SCK

70

PE2-TWI2_SDA

I2C2

TWI2

GPIO/EINT/TWI2_SDA

71

PE1-TWI2_SCK

GPIO/EINT/TWI2_SCK

72

AVDD-CSI

电源输出(CSI)

VCC-OUT

73

CLDO1

电源输出

VCC-OUT

74

DVDD-CSI

电源输出(CSI)

VCC-OUT

75

PB4-TWI1_SCK

I2C1

TWI1

GPIO/EINT/TWI1_SCK

76

PB5-TWI1_SDA

GPIO/EINT/TWI1_SDA

77

PB2

触摸屏中断输入

EINT

GPIO/EINT/SPI2_MOSI

78

PB3

触摸屏复位IO

GPIO

GPIO/EINT/SPI2_MISO

79

PB8

显示屏电源控制

GPIO

GPIO/EINT

80

PB7

显示屏复位信号

GPIO

GPIO/EINT

81

PB6

背光控制信号

GPIO　

GPIO/EINT

82

PG6-UART1_TX

UART1

UART1

GPIO/EINT/UART1_TX

83

PG7-UART1_RX

GPIO/EINT/UART1_RX

84

PH19-PHEINT19

蓝牙复位信号

GPIO

GPIO/EINT

85

GND

电源地

86

VDDIO-WIFI

电源输出(WIFI)

VCC-OUT

87

VDD-WIFI

电源输出(WIFI)

VCC-OUT

88

PD22-PDEINT22

WIFI控制信号

GPIO

GPIO/EINT/TWI0_SCK/PWM1

89

PL6-PLEINT6

唤醒中断输入

EINT

GPIO/EINT

90

PL8-PLEINT8

唤醒中断输入

EINT

GPIO/EINT

91

WL-SDIO-CMD

WIFI/BT模组信号

SDIO

GPIO/EINT/SDC1_CMD

92

WL-SDIO-CLK

GPIO/EINT/SDC1_CLK

93

WL-SDIO-D3

GPIO/EINT/SDC1_D3

94

WL-SDIO-D2

GPIO/EINT/SDC1_D2

95

WL-SDIO-D1

GPIO/EINT/SDC1_D1

96

WL-SDIO-D0

GPIO/EINT/SDC1_D0

97

PG8-UART1_RTS

UART1硬件流控信号

UART1

GPIO/EINT/UART1_RTS

98

PG9-I2S1_MCLK

UART1

GPIO/EINT/UART1_CTS

99

PG10-I2S1_BCLK

BT控制信号

GPIO

GPIO/EINT

100

PG11-I2S1_LRCK

USB电源控制信号

GPIO

GPIO/EINT

101

PG12-I2S1_DOUT0

4G电源控制信号

GPIO

GPIO/EINT

102

PG13-I2S1_DIN0

LED灯控制信号

GPIO

GPIO/EINT

103

WREQIN

104

AP-CK32K-OUT

32.768K时钟输出

CK32K

105

AP-CK24M-OUT

24M时钟输出

CK24M

106

LCD-DE

LVDS/RGB

显示输出

LCD

GPIO/EINT/LCD0/LVDS1/UART4_RX

107

LCD-CLK

GPIO/EINT/LCD0/LVDS1/UART4_TX

108

LCD-D23

GPIO/EINT/LCD0/LVDS1/UART3_CTS

109

LCD-D22

GPIO/EINT/LCD0/LVDS1/UART3_RTS

110

LCD-D21

UART3_RX

UART3

GPIO/EINT/LCD0/LVDS1/UART3_RX

111

LCD-D20

UART3_TX

GPIO/EINT/LCD0/LVDS1/UART3_TX

112

LCD-D19

LVDS/RGB

显示输出

LCD

GPIO/EINT/LCD0/LVDS1/SPI1_MISO

113

LCD-D18

GPIO/EINT/LCD0/LVDS1/SPI1_MOSI

114

LCD-D15

GPIO/EINT/LCD0/LVDS1/SPI1_CLK

115

LCD-D14

GPIO/EINT/LCD0/LVDS1/SPI1_CS

116

LCD-D13

LVDS/RGB/MIPI

显示输出信号

GPIO/EINT/LCD0/LVDS0/DSI_DM3

117

LCD-D12

GPIO/EINT/LCD0/LVDS0/DSI_DP3

118

LCD-D11

GPIO/EINT/LCD0/LVDS0/DSI_DM2

119

LCD-D10

GPIO/EINT/LCD0/LVDS0/DSI_DP2

120

LCD-D7

GPIO/EINT/LCD0/LVDS0/DSI_CKM

121

LCD-D6

GPIO/EINT/LCD0/LVDS0/DSI_CKP

122

LCD-D5

GPIO/EINT/LCD0/LVDS0/DSI_DM1

123

LCD-D4

GPIO/EINT/LCD0/LVDS0/DSI_DP1

124

LCD-D3

GPIO/EINT/LCD0/LVDS0/DSI_DM0

125

LCD-D2

GPIO/EINT/LCD0/LVDS0/DSI_DP0

126

VCC-LCD

电源输出(LCD)

127

GND

电源地

128

LCD-HSYNC

RGB显示输出信号

LCD

GPIO/EINT/LCD0/PWM2/UART4_RTS

129

LCD-VSYNC

GPIO/EINT/LCD0/PWM3/UART4_CTS

130

LCD-PWM

背光PWM信号

PWM

GPIO/EINT/PWM0/TWI0_SDA

131

PC12-SPI0-CLK

GPIO

GPIO

GPIO/EINT/SPI0_CLK

132

PC7-SPI0-CS1

GPIO/EINT/SPI0_CS1

133

PC4-SPI0-MISO

GPIO/EINT/SPI0_MISO

134

PC3-SPI0-CS0

GPIO/EINT/SPI0_CS0

135

PC2-SPI0-MOSI

GPIO/EINT/SPI0_MOSI

136

GND

电源地

137

USB0-DM

USB OTG

USB0

138

USB0-DP

139

USB1-DM

USB HOST

USB1

140

USB1-DP

141

GND

电源地

142

PE9

Camera2 复位信号

GPIO

GPIO/EINT

143

PE8

Camera2 电源控制

GPIO

GPIO/EINT

144

PE6

Camera1 电源信号

GPIO

GPIO/EINT

145

PE7

Camera1 复位控制

GPIO

GPIO/EINT

146

MCSIA-D0N

MIPI CSI信号

MCSIA

147

MCSIA-D0P

148

MCSIA-D1N

149

MCSIA-D1P

150

MCSIA-CLKN

151

MCSIA-CLKP

152

MCSIA-D2N

153

MCSIA-D2P

154

MCSIA-D3N

155

MCSIA-D3P

156

MCSI-MCLK0

MCSI-MCLK

157

MCSI-MCLK1

158

PS

电源输出

159

160

VBAT

电池电源输入

161

162

PC_5V

5V主电源输入
